Transmitter Sites Serving Merseyside


Gaw Hill, Aughton. Dune FM 107.9 . 100 Watts

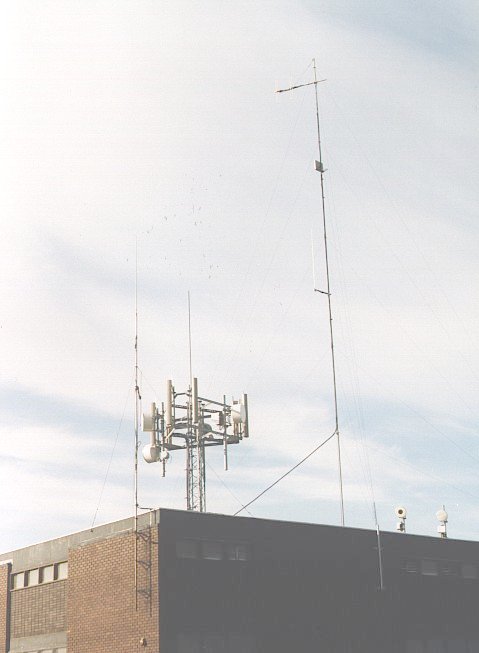

This is Aughton Water Pumping Station at Gaw Hill, Aughton near Ormskirk which carries mostly Mobile cell Phone and utility equipment. The most recent addition is Dune FM 107.9 on 100 Watts. The link is on 1.5 gigs. Transmitting equipment is supplied by SBS. Further details below.

Aughton1

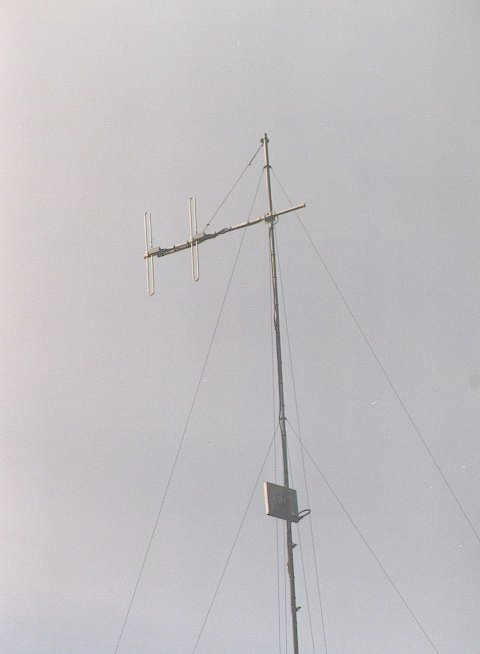

A closer view of the colinear antenna for Dune FM. It is beamed along the North West Coast to cover Southport, Liverpool and North Wirral. The square 'box' on the mast is a 1.5 gigahertz link antenna panel.

Aughton2

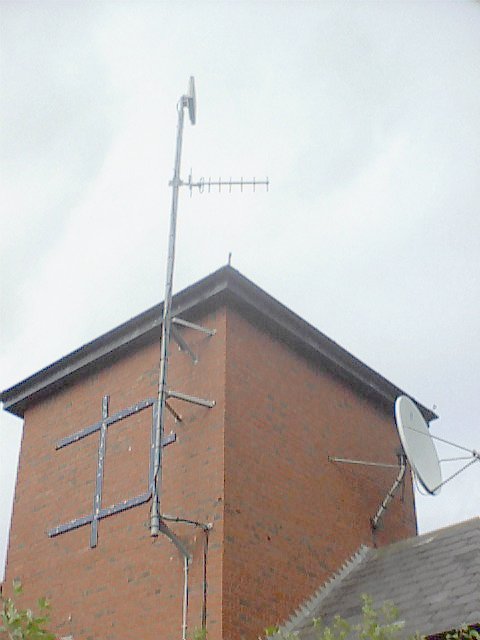

Here is the studio location at southport showing the 1.5 Gig. Link Antenna which is very similar to the receive antenna on the main mast at Aughton

Dune FM Studio location showing link TX antenna

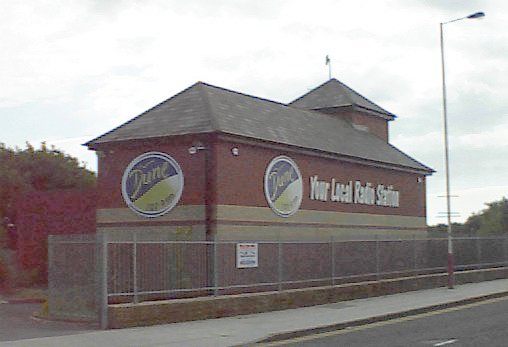

A general view of the purpose built studio building at Southport

Dune FM Studio Building

Details from SBS via Alan 'C ' from CFM :

Site name : Gaw Hill

NGR SD400076

Area: Southport

Site height (AOD)81m
Aerial height (AGL)30m
Frequency 107.9MHz
ERP100W
PolarisationVertical
On-air date1st August 1997
This transmitter covers the southport, Ormskirk and Sefton areas.   A 1.5GHz microwave link is used to feed the site from the Southport studios with an sbs radio link for backup. A Guardian performs the audio switching. The standard sbs configuration of MaXiM and MPX5 are used, with FMLP2 exciters, PA250 amplifiers and an ACU3 changeover unit. An RE532 RDS unit generates the RDS and can be updated from the studio if required. The transmitter is housed in a cabin supplied and installed by sbs. A guyed mast was erected to support the cardioid transmit antenna, 1.5GHz panel and 450 MHz colinear antenna.  At the studio, a Sound Style processor was installed.
